LOHDS854KHDR / LOHDS454KHDR
- Incorporates HD Base-T technology

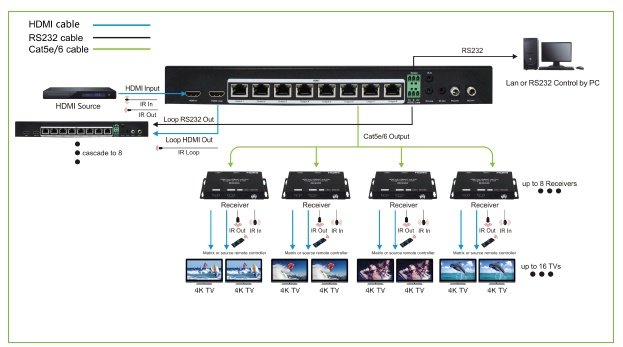

- Distributes 1 HDMI source to 8 HDMI Displays simultaneously
with 1 x looping HDMI output (LOHDS454KHDR 4HDMI Out)
-Input HDMI resolution max up to 4K@60hz YUV 4:4:4
- HDBaseT output up to 4K@60hz YUV 4:2:0
- HDMI output up to 4K@60hz YUV 4:4:4
- Extends HDMI and IR up to 328 feet (100 meters) using one
CAT5e (or better) cable
- Supports high bit-rate audio formats (Dolby True-HD / DTS
Master Audio)
- Support RS232, EDID
-Compliant HDCP 1.4 and 2.2
- Support Cascade to 8 layers
LOHDS54KRX
Recevitor
